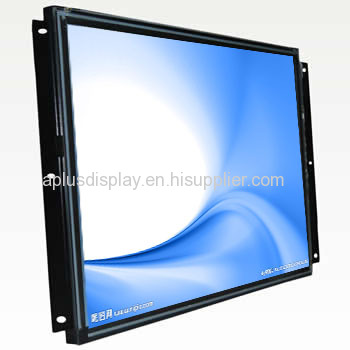

24'' Industrial Open Frame LCD Monitor with Full HD for Advertising,digital signage,gaming,POS AP-24OP manufacturer from China Aplus Display Technology Co., Ltd

Payment Terms:	T/T,WU
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: AP-24OP

Production Capacity: 5000

Delivery Date: 7~10 DAYS

Screen Size: Others

Max Resolution: 1920X1080

Pixel Pitch: 276.75(H) x 276.75(V)

Touch screen: SAW,IR

Means of Transport: Ocean,Land,Air

Packing: new,firm package with firm ...

Application: Others

Brand Name: APLUS

Response Time: 10ms

Average Brightness: 350nits

Main Features:
●27 inch IPS Panel with 300nits, 2569 x 1440 WQHD Resolution
●LED Backlight for Power Saving and environmental protection
●SAW To

Specifications
Model No.	AP-24OPLHN1
Description	24' Open Frame LCD Monitor, TFT LCD 300nits, 1920x1080 Full HD resolution TFT LCD Screen
Size	24''
Display Area (mm)	531.36 (H)x 298.89 (V) mm
Pixel Pitch (mm)	276.75(H) x 276.75(V)
Resolution	1920X1080
Brightness	300 cd/m2
Contrast Ratio	1000 : 1(typ)
Backlight	CCFL Backlight
Viewing Angle	170(H): 160(V)
Display Colors	16.7M colors
Dimension(VxHxT)	636x403.5x43
Touch Screen
Type	NO
Touch Connectors	USB or RS232 (Optional)
Power Information
Power Source	AC 100~240 V, Universal,±10%
Power Consumption	45 W typical, normal operation
Power Management	VESA DPMS Compliant
Display Signals
Plug & Play	VESA DDC 1/2B
Signal Connector	15 pin D-Sub(VGA)/DVI-D
Mechanical
Material	Steel chassis
Mounting	Rear mounting ,VESA Mounting
Certifications
Compliance	CCC,CE,FCC,ROHS
Optional
Touch screen	SAW,Resistive,3M Capacitive Touch Optional
High Brightness	800/1000/1500nits Optional
Order Information
AP-24OPLHN1	24'' Open frame LCD Monitor No touch
AP-24OPLHT1-I	24'' Open frame LCD Monitor with IR touch
